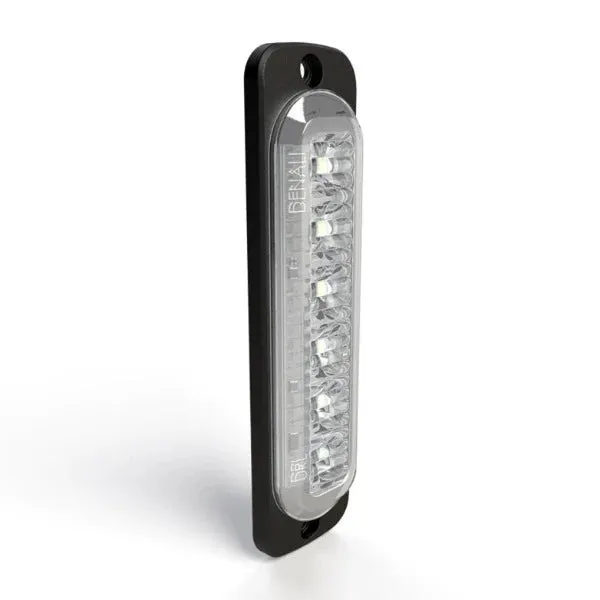

Purpose built to create the most amount of light from the smallest, most low-profile, housing possible, the B6 Brake Light is unbelievably bright but will practically disappear once installed. Complete with an integrated run-brake circuit, the three-wire B6 pod with run at 50% intensity on the red wire and switch to 100% full intensity through the orange wire.
The B6 brake light pods are compatible with a variety of mounting kits that enable the pods to be mounted, on the or onto any flat surface.
Mounts available ( Separate purchase )
Flush Mount - LAH.DRL.10200
Off set Mount - LAH.DRL.10100
Fender light Mount - LAH.DRL.10000
Complete with a waterproof micro connector and included posi-taps, the B6 is super easy to connect into any vehicles brake light circuit. The B6 also connects directly to the DENALI CANsmart™ Controller to enable programmable flash pattern braking and deceleration activated auto brake light functionality making the B6 the brightest and most feature-rich auxiliary brake light on the market.
Features
- Dual Circuit: Running and brake
- 180 degree viewing angle
- Six high power LEDs
- Low 6 watt power consumption
- Low profile design
- Easy to connect to vehicle brake circuit
Specs
- Power Draw: 0.5 Amp
- Voltage: 12V DC
- Size: 4.4" x 1.1" x 0.42"
- Weight: 0.15 lbs
- Raw Lumens: 870
- IP67 Waterproof

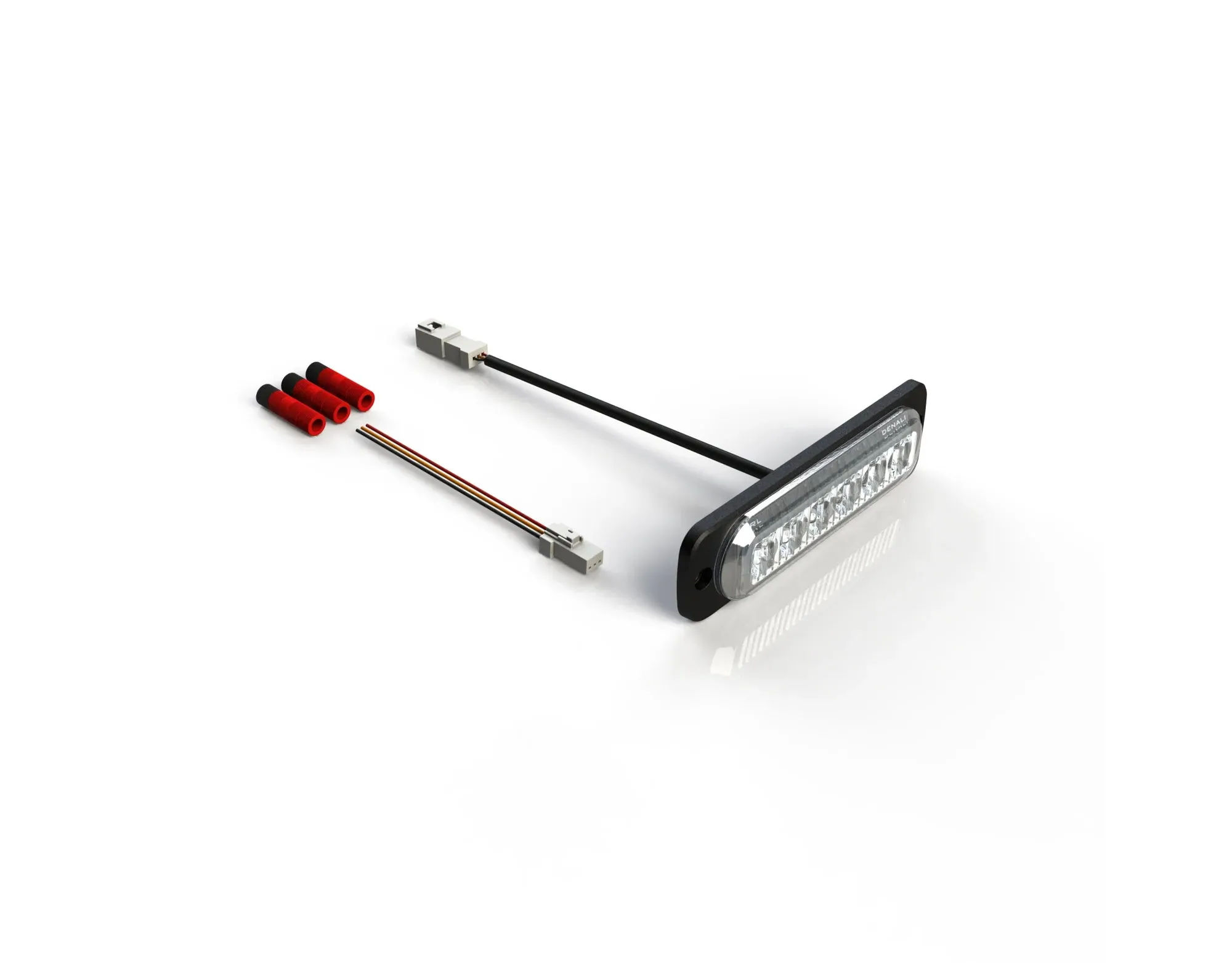

What's In The Box?
- (x1) DENALI Red B6 Brake Light Visibility Pod
- (x1) Wiring Pigtail
- (x3) Posi-Tap Connectors
